Mitorika has 2W type and 5W type Xenon flash lamp modules in product line-up. In 5W type, side-on type and head-on type are available depending on the direction of the emission, and also standard type and fiber cable type are available in both side-on and head-on types. Depending on the electrode direction, horizontal type and vertical type are available.
2W type has almost same light intensity as 5W type in compact body which is half size of 5W type. You can chose the module which can meet your requirement. As the radiant spectrum range is UV to IR, it can be used in a variety of applications. All modules are produced completely in-house domestically in Japan and have long-life time with high stability and output performance. In addition, 2W type is equipped with sleep-mode function for good energy saving. For price or more detailed information, please feel free to contact us by e-mail, phone or Fax.
This module contains xenon flash lamp, trigger socket and control power supply in a compact body. It can be easily fit into analytical instruments.
| Model No. | Specifications | Electrode direction | Discharge capacitors (µF) | |
| XFM050-000 | Standard type | Side-on type | Vertical electrode | 0.047µF |
| XFM050-001 | 0.11µF | |||
| XFM050-002 | 0.22µF | |||
| XFM050-003 | 0.28µF | |||
| XFM050-010 | Horizontal electrode | 0.047µF | ||
| XFM050-011 | 0.11µF | |||
| XFM050-012 | 0.22µF | |||
| XFM050-013 | 0.28µF | |||
| XFM050-100 | Head-on type | Vertical electrode | 0.047µF | |
| XFM050-101 | 0.11µF | |||
| XFM050-102 | 0.22µF | |||
| XFM050-103 | 0.28µF | |||
| XFM050-110 | Horizontal electrode | 0.047µF | ||
| XFM050-111 | 0.11µF | |||
| XFM050-112 | 0.22µF | |||
| XFM050-113 | 0.28µF | |||
| XFM050-200 | Fiber cable adapter type | Side-on type | SMA connector | 0.047µF |
| XFM050-201 | 0.11µF | |||
| XFM050-202 | 0.22µF | |||
| XFM050-203 | 0.28µF | |||
| XFM050-300 | Head-on type | SMA connector | 0.047µF | |
| XFM050-301 | 0.11µF | |||
| XFM050-302 | 0.22µF | |||
| XFM050-303 | 0.28µF |
| Parameters | XFM050 series | ||||||||
| Output | Arc size | 1.5mm | |||||||
| Window material | UV glass | ||||||||

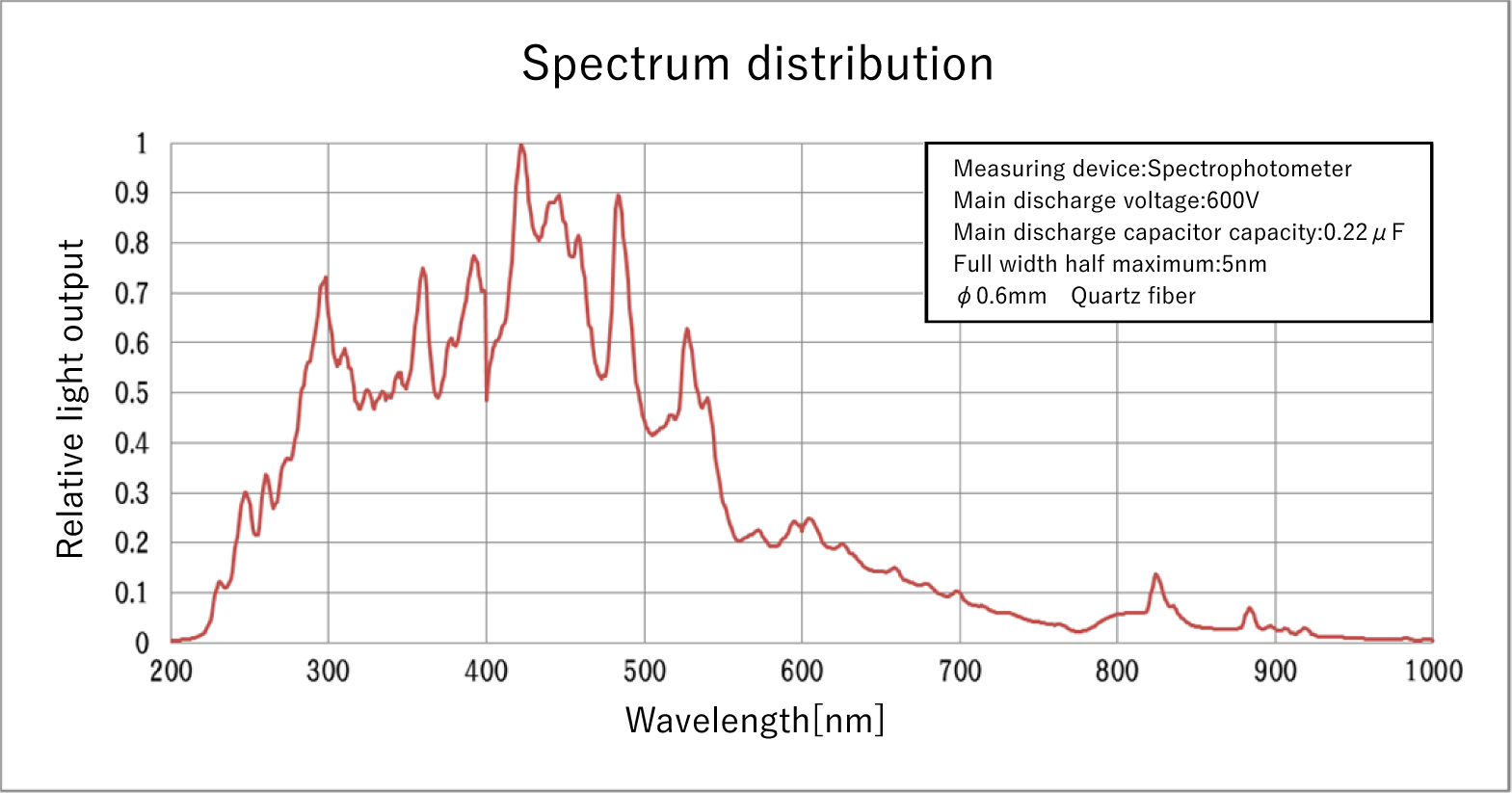

| Spectral range of light output | 185-2000nm | ||||||||
| Stability of light output | Max. 2.0% (1.) | ||||||||
| Guaranteed life | 1 billion flashes | ||||||||
| Max average input | 5W (2.) | ||||||||
| Discharge capacitors | 0.047/0.11/0.22/0.28µF (3.) | ||||||||
| Main discharge voltage variable range | 400V-600V (4.) | ||||||||
| Input | Input voltage (DC) | Min. 11V-Max. 28V | |||||||
| Input current (actual value) | 11V: Max. 1.4A | ||||||||
| Trigger input | 5V (about 10mA), 10µsec or more | ||||||||
| Trigger polarity | Lo⇒Hi to start trigger | ||||||||
| Emission frequency | Max. 530Hz | ||||||||
| Trigger input impedance | 390Ω | ||||||||
| Cooling method | Natural cooling (5.) | ||||||||
| Operating ambient temperature | 0 to 40°C | ||||||||
| Storage temperature | -40 to 90 °C | ||||||||
| Operating & storage ambient humidity | Max 95% Rh (no condensation) | ||||||||
| Weight | Standard type | 250g/XFM050-0 310g/XFM050-1 | |||||||
| Fiber cable adapter type | 270g/XFM050-2 330g/XFM050-3 | ||||||||
This 2W Xenon flash lamp module has a compact body (half-size of 5W module) with high light intensity almost same as the 5W module.
・Stability of light output is max 2.0% CV and good for analytical instruments.
・Guaranteed lifetime is 1 billion flashes.
・Broad radiant spectrum from UV to IR.
・Low calorific value allowing continuous operation with silence, 50dB or less.
・Input voltage is free power supply (4.75V to 26.4V DC),
・With sleep mode, standby current consumption is reduced to about 0.1%.
| Model No. | Main discharge capacitor (μF） |
Main discharge voltage (V) |
Max. repetitive emission frequency(Hz)/Max. average lamp input (W) | |||
| Input 4.75 ~ 5.5 V | Input 10.8 ~ 13.2 V | Input 21.6 ~ 26.4 V | ||||
| XFM020-00 | 0.02 | 400 | 625 / 1 | 781 / 1.25 | 938 / 1.5 | |
| 500 | 500 / 1.25 | 700 / 1.75 | 800 / 2 | |||
| 600 | 486 / 1.75 | 555 / 2 | 532 / 2 | |||
| XFM020-01 | 0.047 | 400 | 532 / 2 | 532 / 2 | 532 / 2 | |
| 500 | 340 / 2 | 340 / 2 | 340 / 2 | |||
| 600 | 236 / 2 | 236 / 2 | 236 / 2 | |||
| XFM020-02 | 0.094 | 400 | 266 / 2 | 266 / 2 | 266 / 2 | |
| 500 | 170 / 2 | 170 / 2 | 170 / 2 | |||
| 600 | 118 / 2 | 118 / 2 | 118 / 2 | |||
| XFM020-03 | 0.141 | 400 | 177 / 2 | 177 / 2 | 177 / 2 | |
| 500 | 113 / 2 | 113 / 2 | 113 / 2 | |||
| 600 | 79 / 2 | 79 / 2 | 79 / 2 | |||
| Parameter | Requirement (at ambient temp 23°C±5°C and body temp 50°C or less) | |||||
| Output | Window material / Spectral range | UV glass / 185 ~ 2000 nm | ||||
| Main discharge voltage variable range | 400 ~ 600 V / changeable with outside signal 3.2 ~ 4.8 V | |||||
| Main discharge capacitor | 0.141 / 0.094 / 0.047 / 0.02 μF | |||||
| Max average input | 2W (continuous) “P[W] = C[F]x(V[Volt])2xf[Hz] / 2” | |||||
| Guaranteed lifetime / Arc size | 1 billion flashes / 1.0 mm | |||||
| Stability | Max 2.0% CV “Stability(%)=(Light output standard deviation/aver light outputx100” | |||||
| Input | Voltage (DC) | Min 4.75 V - Max 26.4 V | ||||
| Input current (Average value)*1 | at 5 V:0.7 A, at 12 V:0.3 A, at 24 V:0.2 A | |||||
| Input current (Peak value)*1 | at 5 V:1.1 A,at 12 V:0.8 A, at 24 V:0.7 A | |||||
| Inrush current (Peak value) *1 | at 5 V:1.8 A,at 12 V:1.9 A,at 24 V:2.1 A | |||||
| Current consumption at sleep mode | Max 150 μA / Recovery from sleep mode: 30 ms | |||||
| Trigger input | 3 V~5 V, pulse width 10 μsec or more | |||||
| Trigger polarity/Trigger input impedance | Rising edge of trigger signal / 330 Ω | |||||
| Cooling method | Natural cooling（Cooling is required when the body temp. goes up to 50°C or more） | |||||
| Operating ambient temp. / Storage temp | 0 ~ 40°C (Humidity 85 %RH or less)/-40 ~ 90°C (Humidity 95 %RH or less) | |||||
| CE Marking | EMC Standard IEC 61326-1 Class A / RoHS Directive EN IEC 63000:2018 | |||||
| Resistance to Vibration / Shock | 10 ~ 55 Hz, 19.6 m/s2 / 196.1 m/s2 max | |||||
| *1 Operating conditions … Main discharge capacitor : 0.141μF, Main discharge voltage :600 V, Emission frequency:79 Hz | ||||||
